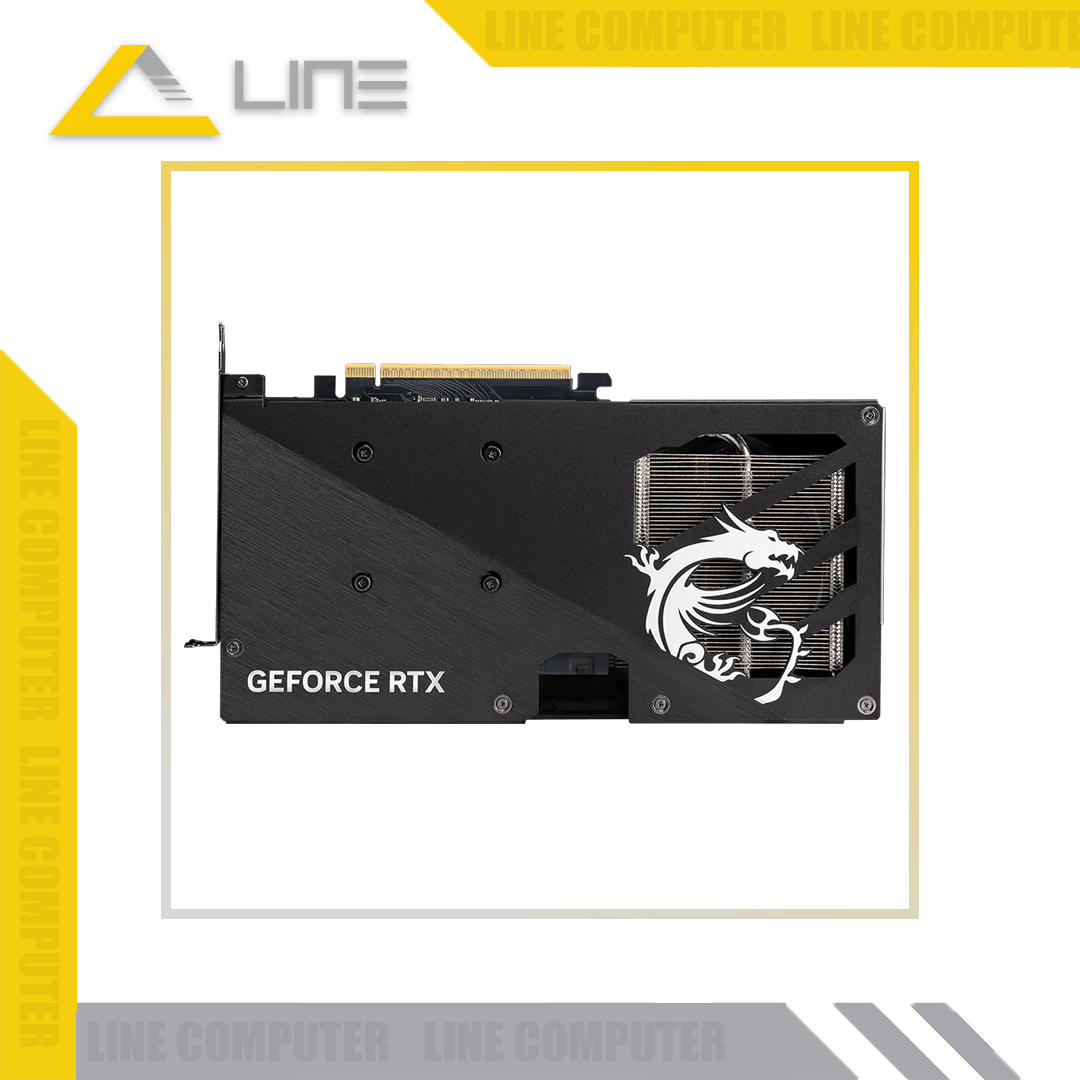

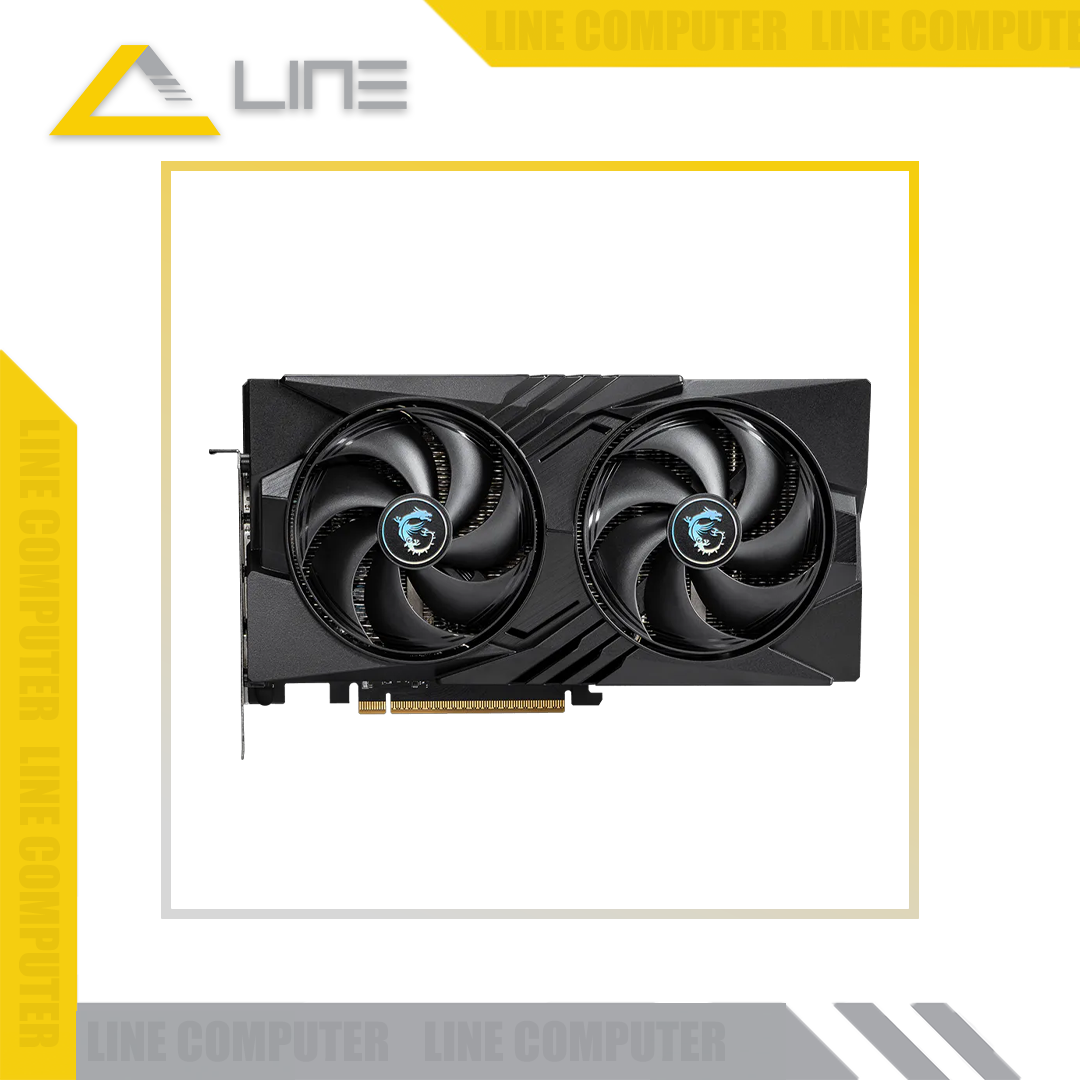

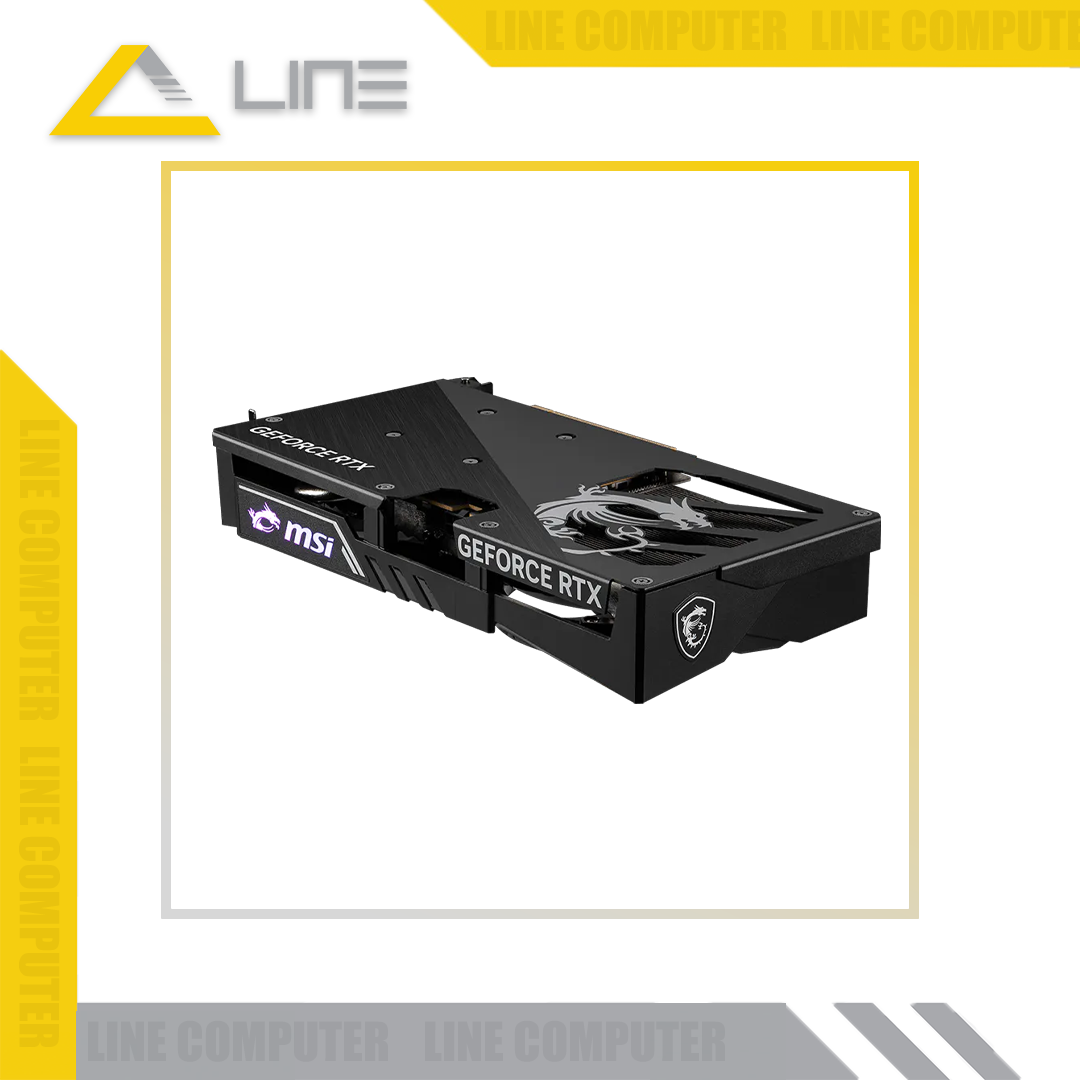

MSI GeForce RTX 5060 8G GAMING OC

Marketing Name
GeForce RTX™ 5060 8G GAMING OC

Model Name
G5060-8GC

Cores
3840 Units

Memory
8GB GDDR7

Graphics Processing Unit
NVIDIA® GeForce RTX™ 5060

G-SYNC™ technology
Y

Interface
PCI Express® Gen 5 x16 pin(uses x8)

Boost / Base Core Clock
Extreme Performance: 2640 MHz (MSI Center)
Boost: 2625 MHz

Memory Interface
128-bit

Memory Clock Speed (MHz)
28 Gbps

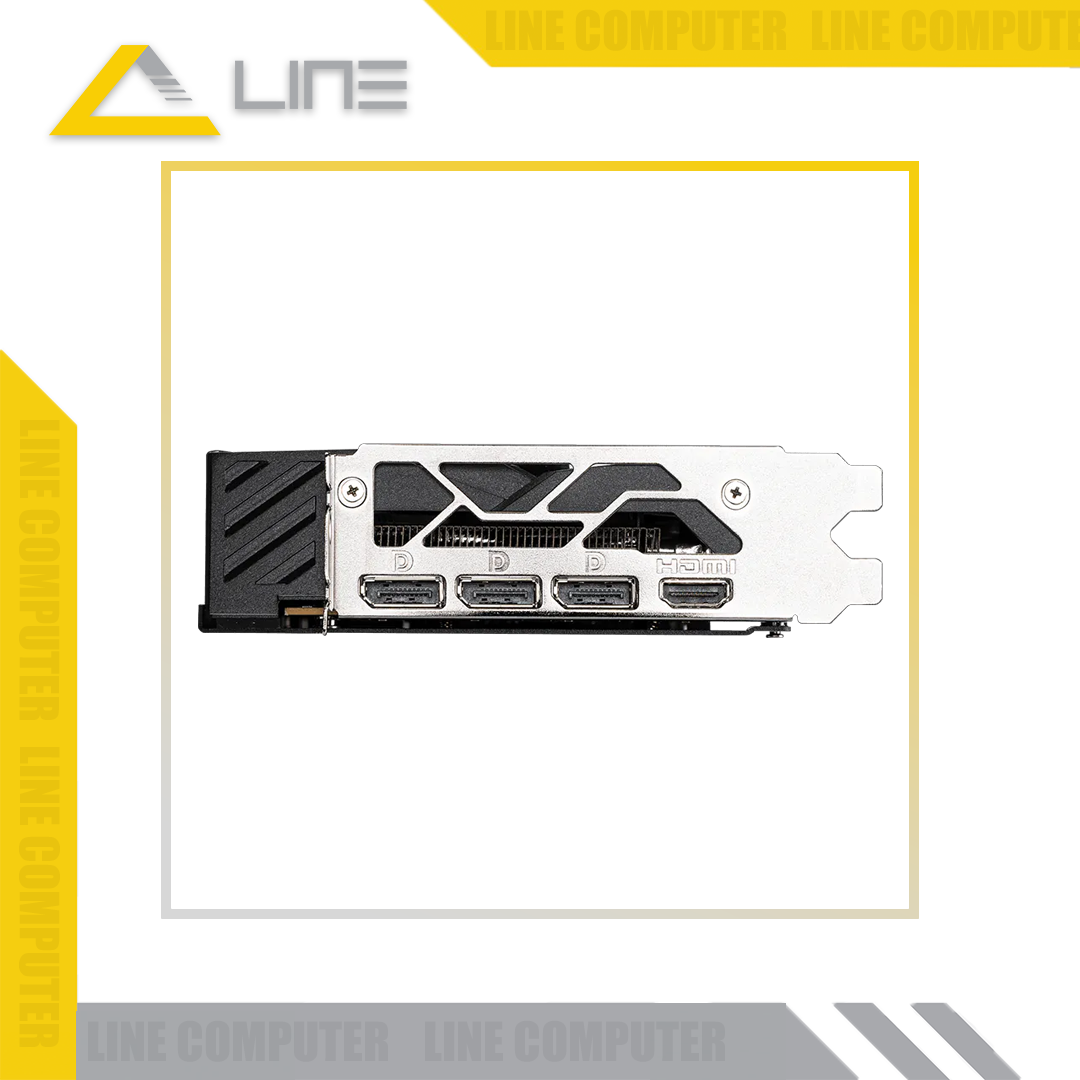

Output
DisplayPort x 3 (v2.1b)
HDMI™ x 1 (Supports 4K@480Hz HDR, 8K@120Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1b)

Maximum Displays
4

HDCP Support
Y

DirectX Version Support
12 Ultimate

Card Dimension(mm)
248 x 135 x 41 mm

Card Weight (g)
649 g / 966 g

Power consumption (W)
155 W

Recommended PSU (W)
550 W

Power Connectors
8-pin x 1
