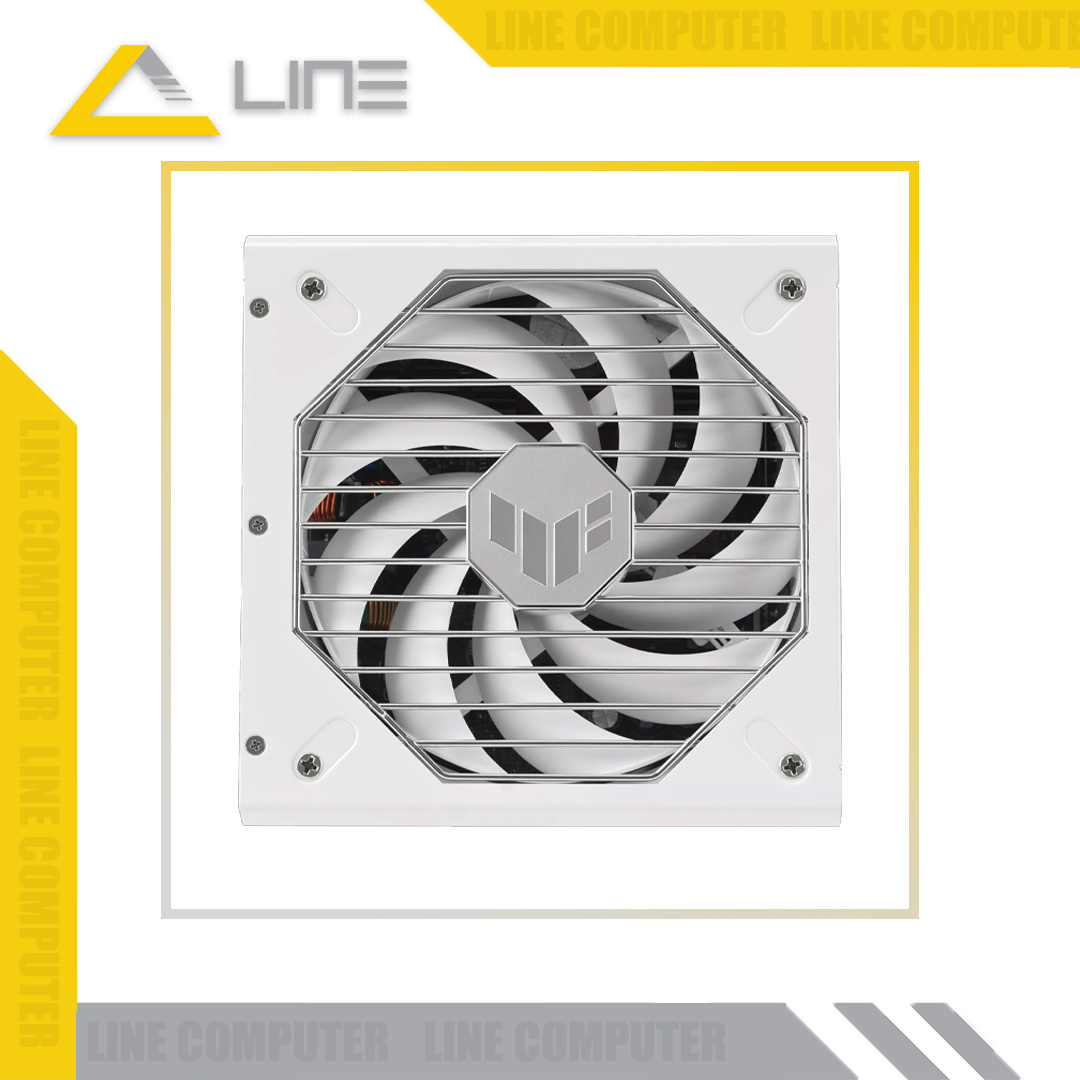

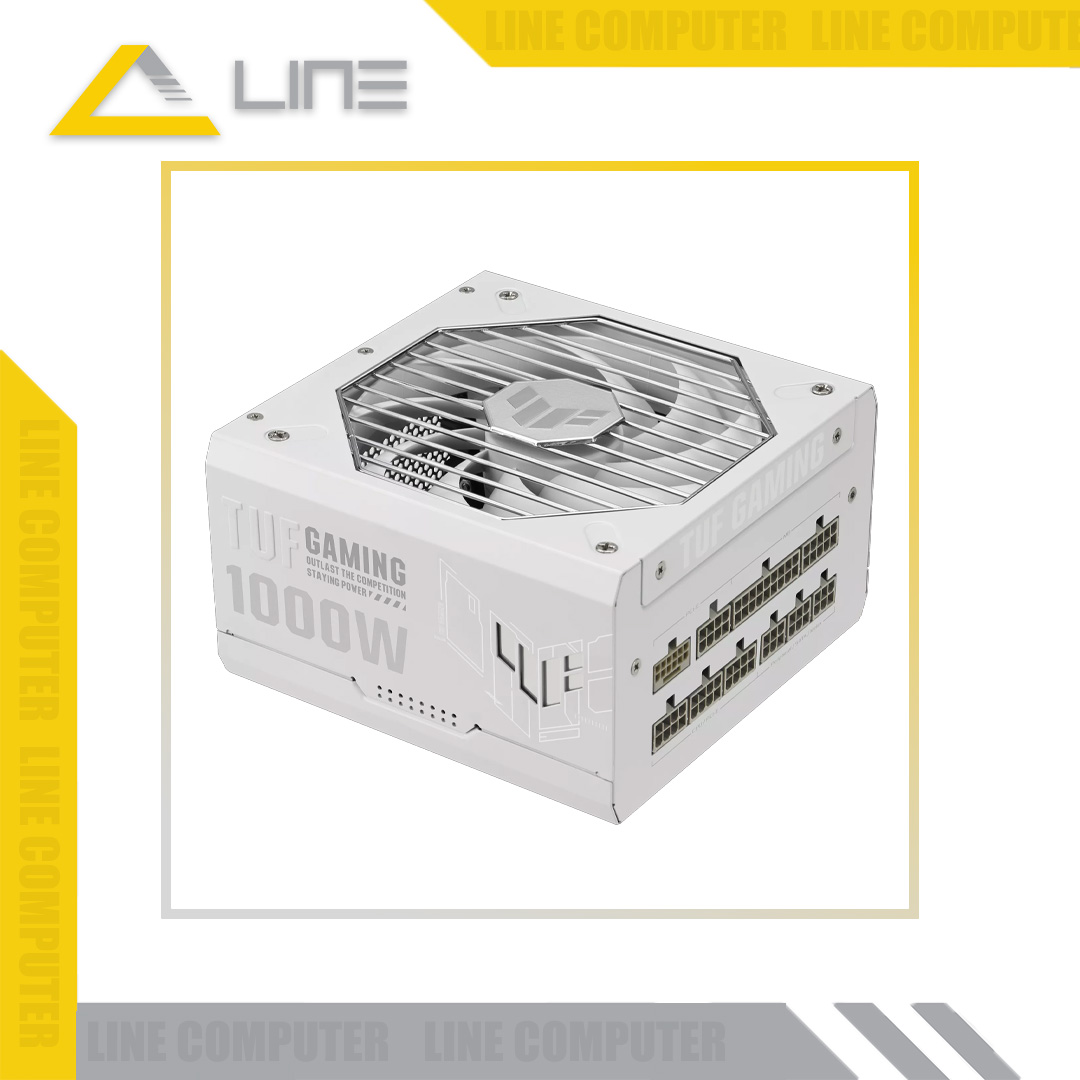

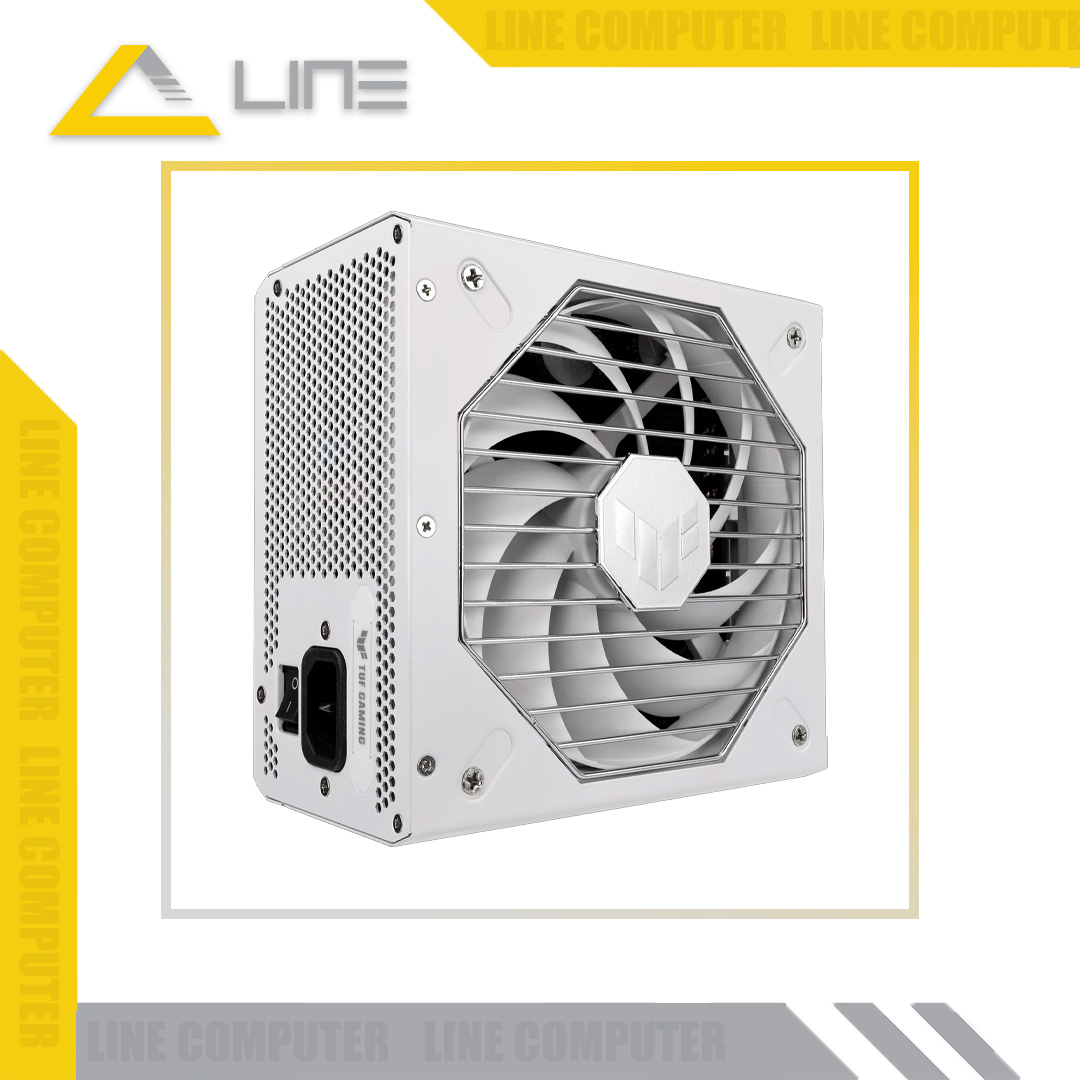

ASUS TUF Gaming 1000W Gold White Edition

Model

TUF-GAMING-1000G-WHITE

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

80 PLUS Efficiency

80Plus Gold

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A25A83.3A 0.8A 3A

Combined Load

130W 130W 1000W 9.6W 15W

Total Output

1000W

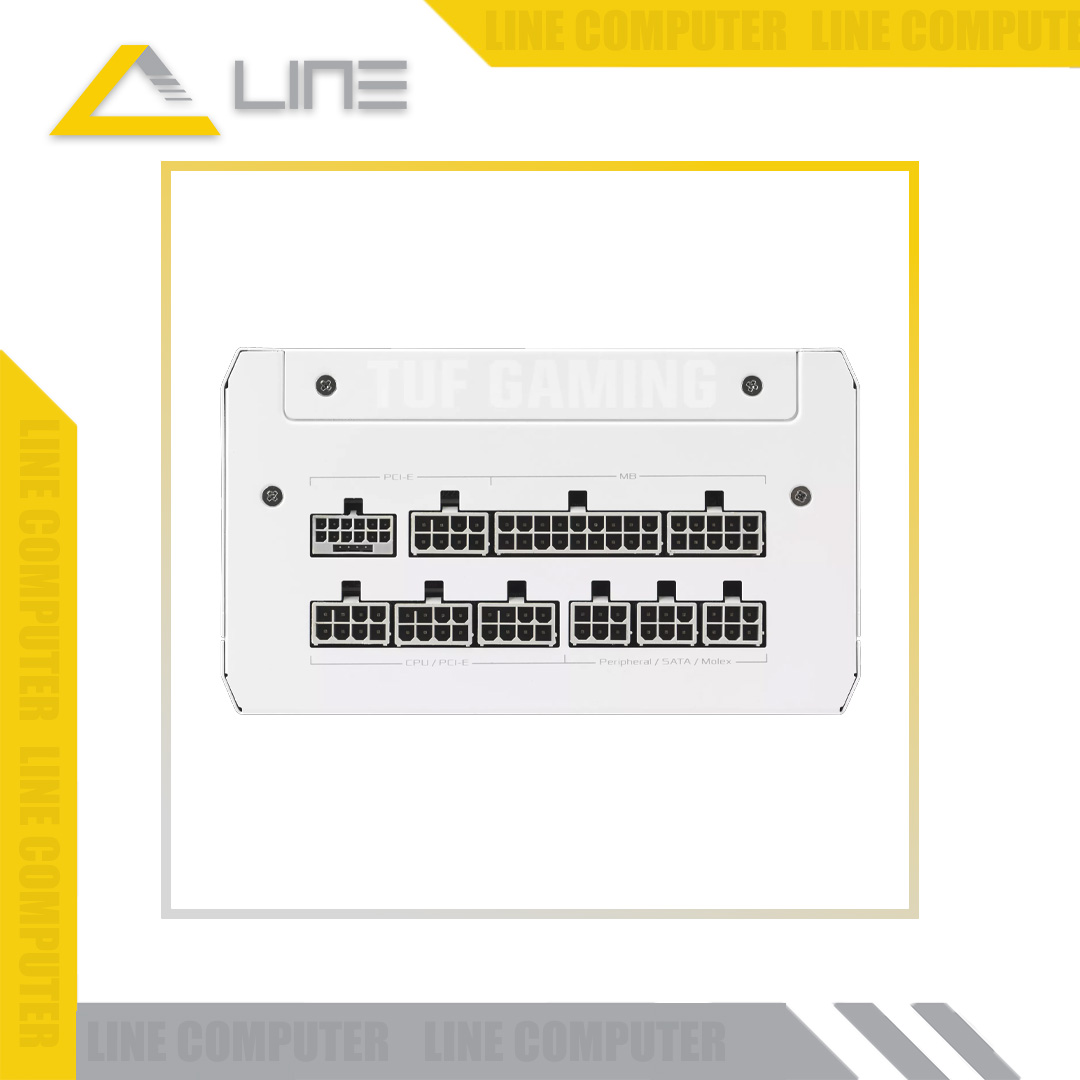

Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 4
SATA x 5
PERIPHERAL x 4

Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5.1 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 2 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable Tie x 3
User Manual x 1

Dimensions

150 x 150 x 86 mm

Weight

2.48kg (single PSU)

AURA SYNC

No

MTBF

>120,000 hrs @ 40°C

0dB Fan Button

No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.
